copper nickel pipe fittings
What is copper nickel pipe fitting
90/10 copper-nickel (Cu90Ni10) pipe fittings, leveraging the advantages of their copper-nickel alloy ratio, possess excellent resistance to seawater corrosion, marine biofouling, crevice corrosion, and stress corrosion. They also exhibit outstanding thermal conductivity, good low-temperature toughness, are non-magnetic, easy to weld, and 100% recyclable. Compared to ordinary stainless steel, they offer greater adaptability, a longer service life, and superior cost-effectiveness.
Their core applications include marine and offshore oil and gas platforms, seawater desalination, coastal thermal and nuclear power plants, and chemical brine transportation. They are widely used in corrosive fluid piping systems such as seawater cooling, fire-fighting water supply, heat exchange condensation, and brine transportation.
Main product categories include standard pipe fittings such as copper-nickel pipes, elbows, tees, reducers, pipe caps, flanges, socket joints, pipe clamps, and threaded joints. Custom-made non-standard and irregular pipe fittings are also available to meet various pipeline turning, branching, diameter reduction, and sealing connection requirements.
CuNi90/10 Chemical Composition
| Elements | KME CuNi90/10 | DIN 17664 2.0882 | BS 2871 CN102 | ASTM B466 C70600 | JIS H3300 C7060T | DIN 86019 2.1972 | EEMUA 234 UNS 7060X | GB/T 5231 BFe10-1.6-1 |
Ni% | 10.0-11.0 | 9.0-11.0 | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 9.0-11.0 | 10.0-11.0 | 9.0-11.0 |
Fe% | 1.5-1.8 | 1.0-2.0 | 1.0-2.0 | 1.0-1.8 | 1.0-1.8 | 1.5-1.8 | 1.5-2.0 | 1.5-1.8 |
Mn% | 0.6-1.0 | 0.5-1.0 | 0.5-1.0 | max.1.0 | 0.2-1.0 | 0.5-1.0 | 0.5-1.0 | 0.5-1.0 |
C% | max.0.05 | max.0.05 | max.0.05 | max.0.05 | max.0.05 | max.0.05 | max.0.05 | |
Pb% | max.0.01 | max.0.03 | max.0.01 | max.0.02 | max.0.05 | max.0.01 | max.0.01 | max.0.03 |
S% | max.0.005 | max.0.02 | max.0.05 | max.0.02 | max.0.005 | max.0.02 | max.0.01 | |
P% | max.0.02 | max.0.02 | max.0.02 | max.0.02 | max.0.02 | max.0.02 | ||
Zn% | max.0.05 | max.0.50 | max.0.50 | max.0.50 | max.0.05 | max.0.20 | max.0.20 | |
Other | max.0.20 | max.0.30 | max.0.20 | max.0.30 | max.0.40 | |||
Cu % | rem. | rem. | rem. | rem. | +Ni+Fe+Mn min99.5 | rem. | rem. | rem. |
Product show

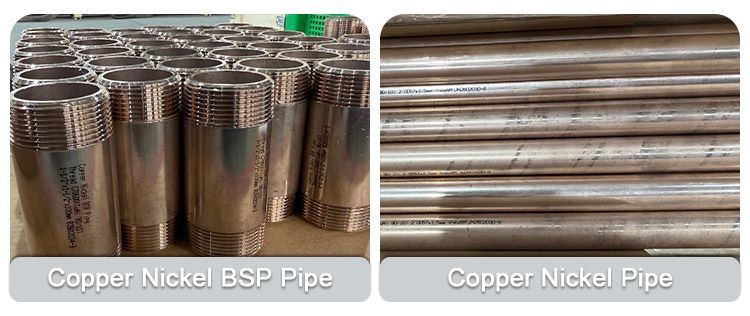

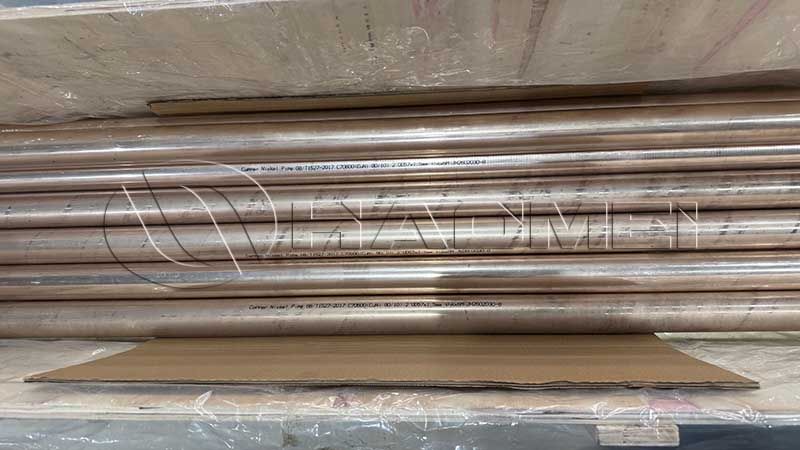

Copper nickle pipe
We have BSP pipe and long copper nickle pipe for you.

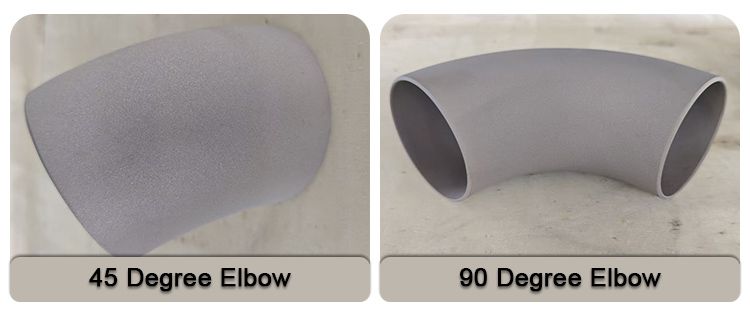

Copper nickle elbows

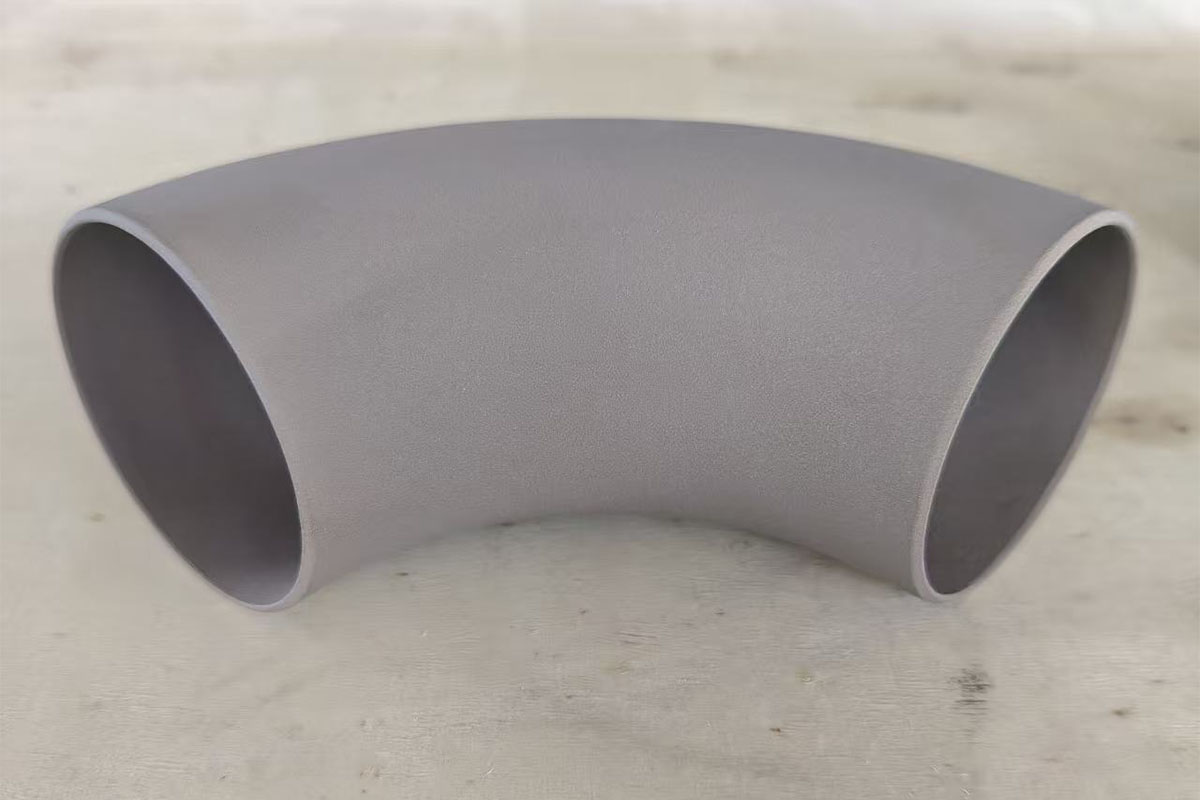

There are 90°long radius elbows and 45°long/short radius elbow.

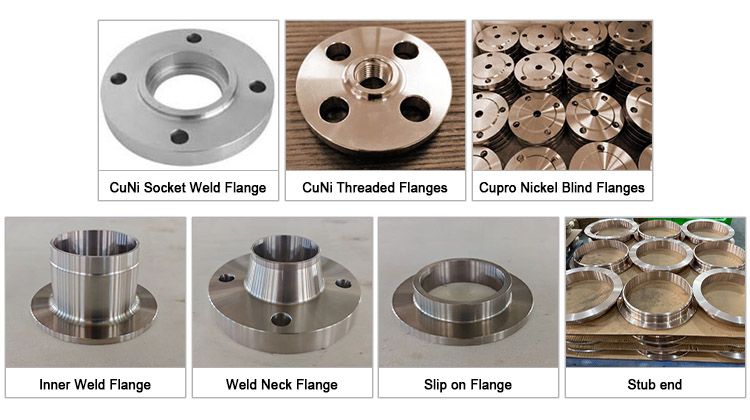

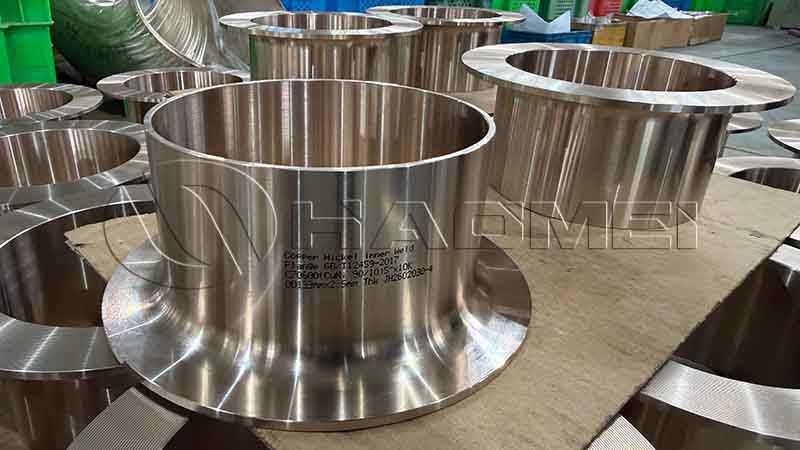

Copper nickle flanges

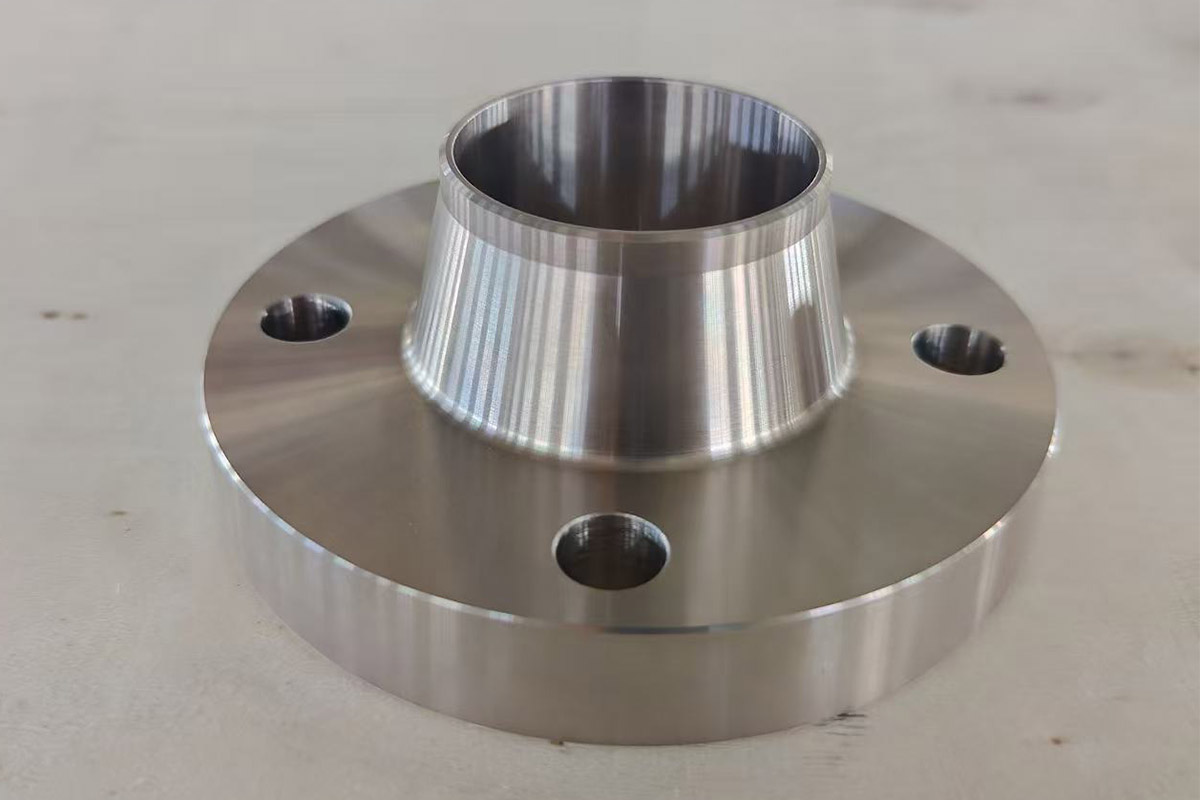

There are slip-on flange, Weld Neck Flange, Inner Weld Flange,blind flange,compoiste flange, stub end, SW flange, threaded flange, etc.

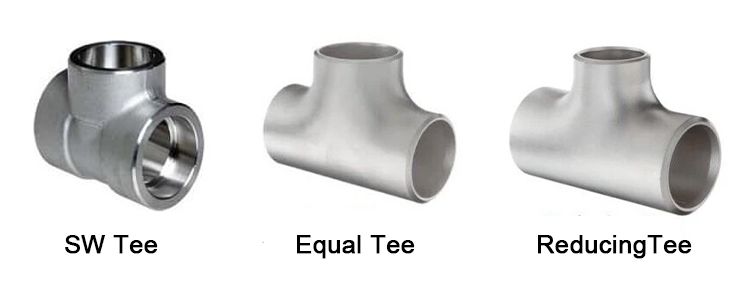

Copper nickle tee
There are Equal tee, reducing tee, SW tee.

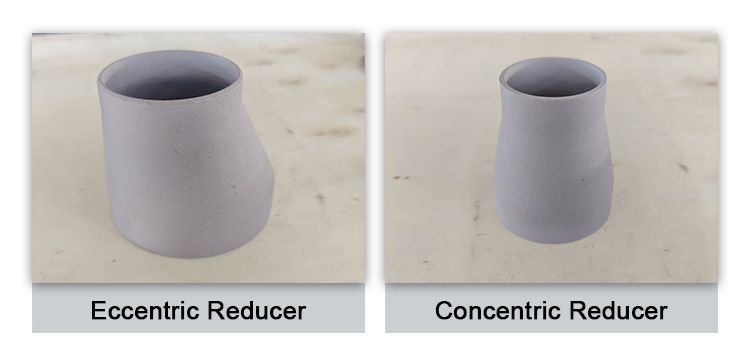

Copper nickle reducer

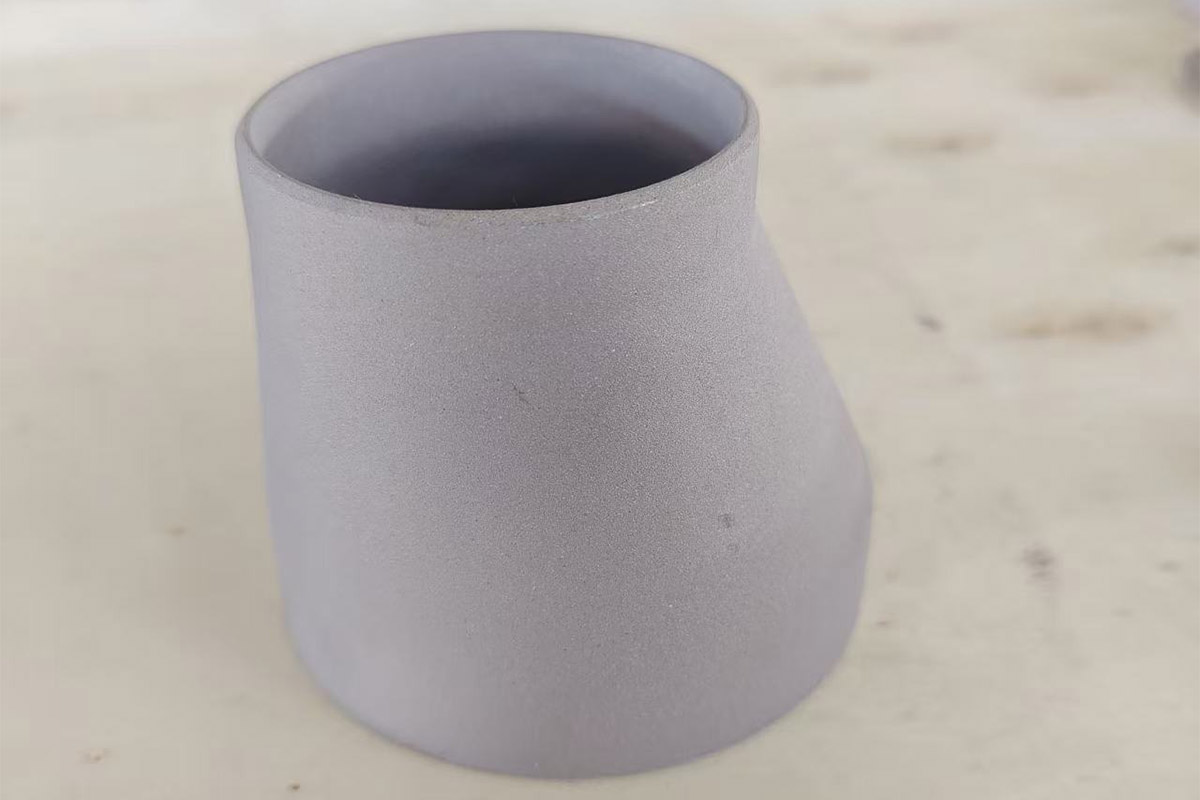

There are concentric reducer and eccentric reducer.

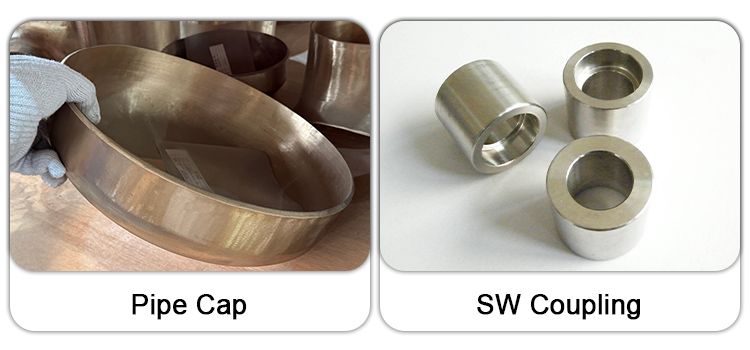

Copper nickle Pipe Cap / Coupling/ SW coupling

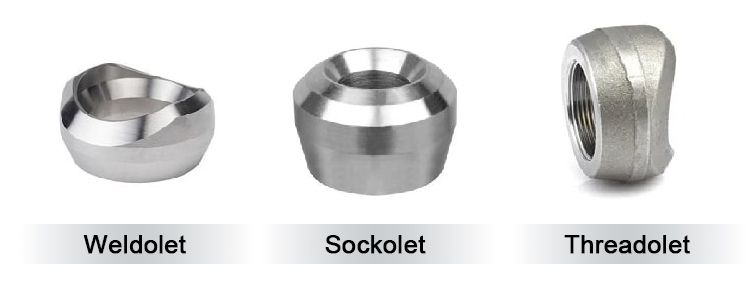

Weldolet/sockolet/threadolet

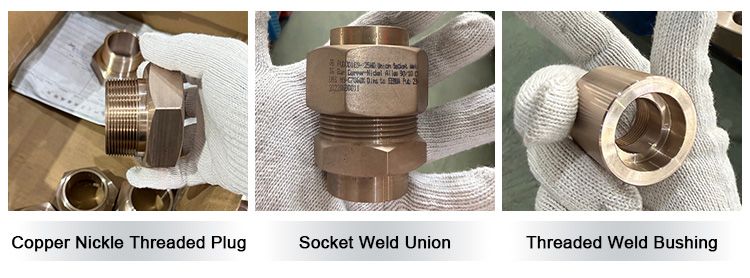

Plug Bushing
Features
1. Excellent resistance to seawater corrosion, with a service life of over 20 years.
2. Integral push-forming/forging, no splicing, no sand holes, no cracks.
3. High dimensional accuracy, uniform wall thickness, negative deviation≦±5%.
4. Standard BSP thread, tight engagement and no slippage.
5. Pickled,passivated, rust-proofed before leaving the factory, suitable for marine transportation environments.
Quality control
1. 100% PMI Test: Every single fitting undergoes Positive Material Identification to guarantee nickel content (9.0%-11.0%).
2. Non-Destructive Testing (NDT): 100% Radiographic Testing (X-ray) for welded seams and Ultrasonic Testing (UT) for heavy-wall components.
3. After-sales guarantee: Unconditional return and exchange for defective goods; we will bear the round-trip shipping costs.
4. We provide Material testing report and classification society certifications you need.
Why choose Haomei Aluminum
1. Marine-Grade Purity: It is special for marine seawater cooling system, fire main system, bilge water system, marine engineering pipelines.
2. Class Society Approved: Our manufacturing processes align with top IACS members (DNV, ABS, CCS,etc.). We handle the paperwork, so your vessel passes inspection smoothly.
3. All fittings are treated with anti-tarnish oil, fitted with plastic end caps, and securely packed in fumigation-free plywood cases to prevent ocean transport damage.
FAQ
1. Do your products come with a Mill Test Certificate?
A: Yes, all products come with an original manufacturer's material warranty certificate, which is shipped with the goods.
2. Can you customize copper-nickel pipe fittings to special specifications?
A: Yes, we support customization of non-standard sizes and specifications based on customer drawings.
3. What is the delivery time?
A: 7-15 days for standard specifications, 15-30 days for customized products.
4. Which classification societies are your products compatible with?
A: Our products comply with the specifications of major classification societies such as CCS, BV, LR, DNV, and NK.
5. What other pipe fittings do you provide?
A: We also have marine aluminum pipe fittings and stainless steel pipes.
6. How can I get copper nickle pipe fitting catalog?
A: Since the copper nickle pipe fittings have rich types and standards, it can't be fully shown in this page. So please download the below PDF file to check.
