Alu 5086

Why Choose Marine Grade Aluminum 5086

In shipbuilding, 5083 and 5086 aluminum plates are often used for the hull, operating table and deck. The underwater part of the hull must be able to resist seawater corrosion since it keeps contact with the sea water for a long time. The harsh working environment requires the marine grade aluminum sheet have excellent corrosion resistance, high strength, excellent welding performance and good formability.

5086 aluminum sheet is an ideal choice. Its main element is Magnesium. 5086 aluminum plate has high corrosion resistance, good weldability and medium strength. The excellent corrosion resistance of 5086 aluminum plate is an important reason why it is widely used in shipbuilding. 5086 aluminum plate is also called "rust-proof aluminum plate."

Specification of 5086 Aluminum Sheet

Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Zr

Standard

5086

0.4

0.5

0.1

0.20-0.70

3.50-4.50

0.05-0.25

0.25

0.15

-

EN573

ASTM b928

Mechanical Properties


Alloy

Temper

Rm(Mpa)

Tensile strength

Rp0.2(MPa)

Yield strength

Elongation

A(%)

Exfoliation

corrosion

Intergranular corrosion

Mg/cm2

Certification

5086

O/H111

240-305

95

16

-

-

DNV, GL, ABS, CCS, BV, LR

H112

250

125

8

-

-

H116

275

195

10

PB

15

Size

Alloy

Temper

Thickness(mm)

Width(mm)

Length(mm)

5086

O/H111/H112/H116/H321

3-50

3600

6000/8000/9000/12000mm

Or customized

The Differences Between 5083 and 5086 Aluminum Plate

Their main difference lies in the chemical composition content and mechanical properties.

  • The content of each chemical composition of 5083 aluminum plate: Si: ≤0.4; Cu: ≤0.1; Mg: 4.0-4.9; Zn: 0.25; Mn: 0.40-1.0; Ti: ≤0.15; Cr: 0.05-0.25; Fe: 0.4.

  • The content of each chemical component of 5086 aluminum plate: Mg: 3.5-4.5; Zn: ≤0.25; Mn: 0.20-0.7; Ti: ≤0.15; Cr: 0.05-0.25; Fe: 0.000~0.500.

  • Marine grade 5083 mechanical properties: tensile strength:110-136; elongation: ≥20, annealing temperature: 415℃; yield strength: ≥110.

  • Marine grade 5086 mechanical properties: tensile strength: ≥240; conditional yield strength: ≥ 95; elongation (10)%: 10 and elongation 5(%): ≥ 12.

Advantages of 5086 Aluminum Sheet

  • It is of light weight and excellent welding performance, contributing to the light weight and less fuel consumption and less maintenance cost.

  • Its elastic modulus is small, which can absorb large impact stress.

  • It has no low temperature brittleness, which is suitable for low temperature equipment.

  • Aluminum scrap has a high recycling value.

  • Because it is non-magnetic, the compass is not affected. The all-aluminum boat can avoid mine attack and is suitable for thunder sweeping.

  • It has no dry deformation and no burning when encountering fire.

Why Choose Haomei Aluminum

1. . The domestic advanced slicing line meets customer's customized requirements

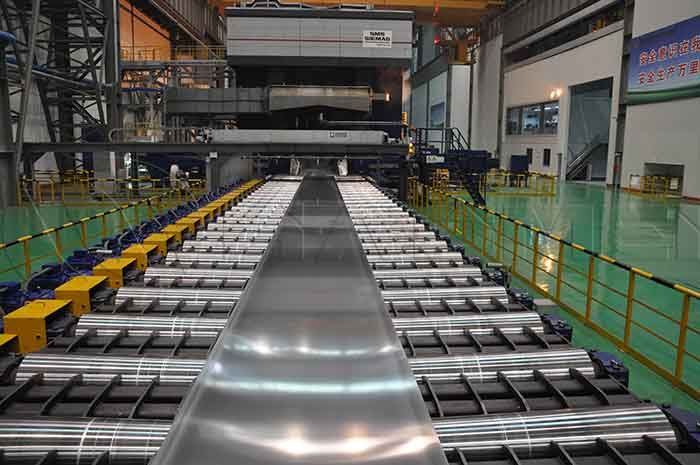

The main equipment includes decoiler, rough straightening machine, disc shear, oil cleaning device, fine straightening machine, belt conveyor, etc. The processing range is: 4-16 mm *850-1800 mm * 600-8000 mm, which meets most of the market needs. Welcome to leave message below to inquire 5086 aluminium sheet price.

2. Advanced polishing processing technology

Through pure mechanical principles, it solves various surface problems of 5086 aluminum plates, reducing the surface roughness and improving the uniformity in color.

3. Minimum the vertical and horizontal error

Accurate precision of finished product: allowable error of longitudinal parallelism: ≦±2 mm, allowable error of lateral parallelism: ≦±2 mm, vertical and horizontal error: ≦0.1 mm/200 mm, allowable error of diagonal: 2.0 × aluminum plate width ÷ 1000 mm, surface roughness of the cutting section: Ra≦25 (when the feed speed is 1m/min).
