What Are Size Requirements of Marine Aluminum Sheets
Width of marine aluminum sheets
The width of marine grade aluminum plates must consider both the structural dimensions of the ship's components and the processing technology. Currently, the industry has established a dual system of "standard width + ultra-wide customization" to adapt to the needs of different types of vessels.
For non-load-bearing components of small yachts, fishing boats, and other simple vessels, such as cabin bulkheads and interior panels, standard wide aluminum sheets are sufficient. Common specifications are concentrated in the range of 1000mm, 1220mm, and 1250mm. The advantage of these sizes is that there is ample stock available, eliminating the need for additional customization, shortening the procurement cycle, and aligning with the processing capabilities of small processing equipment, reducing cutting difficulty.

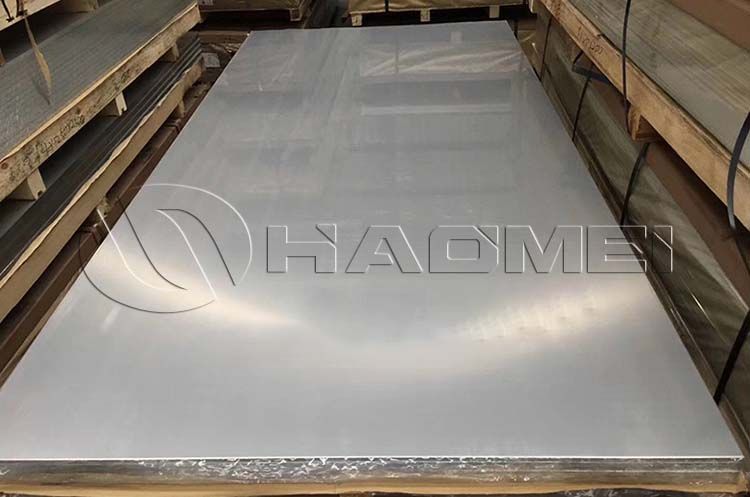

However, for the hulls, decks, and other core structures of large cargo ships and container ships, the application of ultra-wide aluminum plates has become the mainstream trend. Currently, mainstream aluminum plate manufacturers can stably supply marine-grade aluminum plates with widths of 2000mm-2650mm, and widths can be customized up to 3000mm for some special requirements.
Taking 5083 alloy aluminum sheet as an example, wide sheets exceeding 2000mm are widely used in the deck paving of large ships. Their core value lies in reducing the number of seams and improving structural integrity.
Marine Aluminum Sheet Length
Compared to width, the selection of marine aluminum sheet length emphasizes "matching the same size" with hull components, avoiding multiple splicing issues caused by insufficient length. The industry typically categorizes lengths into standard general-purpose and extra-long custom-made types.
Standard large aluminum plates are mainly 2000mm, 2440mm, 3000mm, and 4000mm, suitable for manufacturing small ship components, such as equipment covers and pipe fittings. These sizes offer strong versatility, and the cut scraps can be recycled, effectively controlling material waste.
When dealing with longitudinal structural components of the hull, such as keel extension plates and side longitudinals, extra-long custom-made aluminum sheets become the inevitable choice. Currently, technologically advanced aluminum plate manufacturers can produce plates exceeding 10 meters in length, with some special orders even extending to 16,000 mm.
For example, in the manufacturing of storage tank components for LNG carriers, the application of extra-long aluminum plates enables seamless longitudinal structural connections, avoiding stress concentration issues caused by splicing. This is crucial for ensuring structural stability in low-temperature environments.
Why Choosing the Right Size is Important
First, it improves structural reliability and reduces safety risks. Ships in marine environments must withstand multiple challenges, including wave impacts and seawater corrosion. Excessive seams are not only major sources of corrosion but also weak points in structural strength. Extra-wide and extra-long aluminum plates reduce the number of splices.
For example, a 2500 mm wide deck aluminum plate has more than 50% fewer seams than a 1250 mm wide plate, effectively reducing the risk of seawater infiltration and improving overall impact resistance. According to classification society testing, the application of appropriately sized aluminum plates can increase the fatigue life of the hull structure by approximately 30%.
Second, it simplifies the construction process and reduces construction costs. The reduction in splicing processes directly translates to a decrease in welding workload. Taking a 100,000-ton cargo ship as an example, replacing 1220mm wide plates with 2000mm wide aluminum plates can reduce deck welding time by 40%, while also saving on consumables such as welding wire and flux.
Furthermore, the readily available standard-sized aluminum plates and precise matching of customized sizes can reduce waste of scrap materials, increasing material utilization from the conventional 75% to over 90%.
Thirdly, it facilitates lightweight design and improves operational efficiency. Aluminum plates inherently possess lightweight advantages, and suitable dimensions further amplify this characteristic. Reducing the additional weld weight from splicing can lower the overall hull weight by 5%-8%, directly translating into increased sailing speed and reduced fuel consumption. Haomei Aluminum is one of the marine aluminum sheet suppliers which can provide extra wide & long aluminum sheets. Welcome to tell us your specific requirements.
