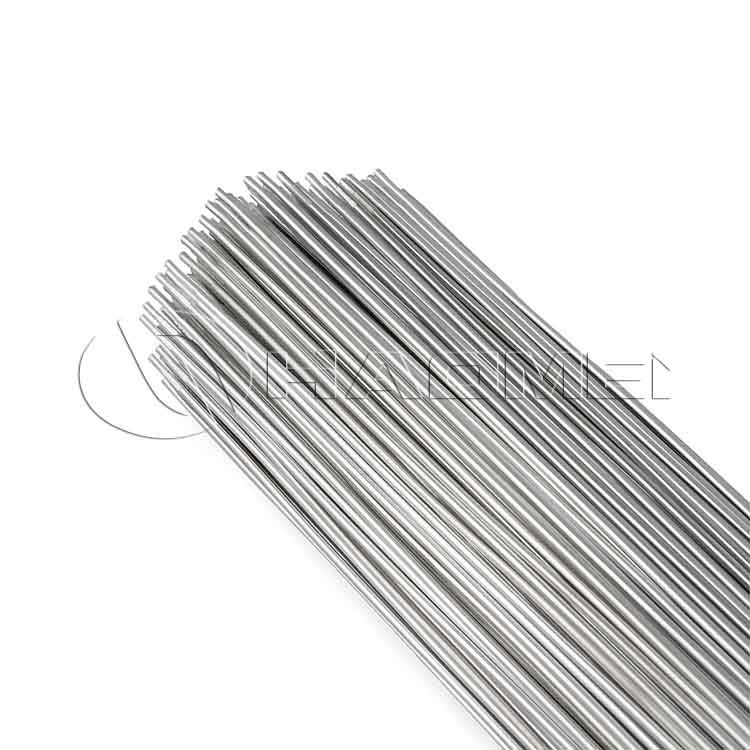

Is 5356 Tig Rod The Single Strand Aluminum Wire
Is 5356 welding wire a single-strand aluminum wire? The answer is clearly no. Single-strand aluminum wire is mostly made of pure aluminum or simple aluminum alloys, used only for basic applications such as conductivity. 5356 tig rod, however, is a professional welding material with a precisely formulated alloy ratio, and its performance and uses are vastly different from ordinary aluminum wire.
Single-strand aluminum wire has a relatively simple composition, primarily pure aluminum, containing almost no other alloying elements. Its main function is current transmission, and the mechanical properties after welding do not need to be considered. 5356 welding wire, on the other hand, belongs to an aluminum-magnesium alloy system.
Its core component is an aluminum matrix with 4.5%-5.5% magnesium added, supplemented with small amounts of manganese, chromium, and other elements for performance optimization. This precise alloy ratio has been verified through industrial practice to ensure that the weld joint matches the properties of the base material—a design logic that ordinary single-strand aluminum wire completely lacks.
From a product attribute perspective, 5356 welding wire is a professional filler metal that conforms to international standards such as AWS A5.10 and ISO 18273. Each wire is usually embossed with an alloy marking for identification. Single-strand aluminum wire, on the other hand, only needs to meet conductivity standards and does not have the stringent requirements for welding materials.
In terms of form, 5356 welding wire is not only available in straight bars but also frequently supplied in spools to meet the wire feeding requirements of MIG welding, something that ordinary single-strand aluminum wire cannot achieve.
Core Advantages
1. High Strength: The precise addition of magnesium is the core secret to the high strength of 5356 welding wire. Its welded joints can achieve tensile strengths of over 240 MPa, and in some applications, even up to 262 MPa. This strength perfectly matches the welding requirements of 5xxx series (such as 5052 alloy, aa 5083 aluminum) and 6xxx series aluminum alloy base materials.
Whether for load-bearing structural components or impact-resistant mechanical parts, 5356 welded joints provide stable support, which is why it is widely used in trailer manufacturing, bicycle frames, and other fields.
Meanwhile, the auxiliary effects of manganese and chromium refine the grains, further improving the toughness and fatigue resistance of the joint, preventing the welded area from becoming a structural weak point.
2. Excellent Corrosion Resistance
One of the most troublesome problems in aluminum alloy welding is corrosion, and 5356 welding wire effectively solves this problem. Its chromium content forms a dense oxide film on the surface of the welded joint, effectively blocking the intrusion of external corrosive media, especially in humid or corrosive environments such as marine and chemical plants.
Therefore, 5356 welding wire is always the first choice in fields with extremely high corrosion resistance requirements, such as shipbuilding and seawater desalination equipment. More importantly, this corrosion resistance is not a short-term phenomenon; long-term practical verification has shown that its welded joints maintain structural integrity even in salt spray environments, significantly extending product lifespan.
4. Superior Appearance and Compatibility
In applications where appearance is important, the advantages of 5356 welding wire are equally evident. Its welded joints, after anodizing, are pure white, perfectly matching the base material color, which is crucial for fields with aesthetic requirements such as architectural decoration and automotive exterior parts.
In terms of compatibility, it can not only weld 5xxx and 6xxx series aluminum alloys, but also be used for dissimilar welding of various aluminum alloys. With a variety of diameter specifications from 0.8mm to 3.2mm available, it can meet different welding needs from thin-walled parts to thick plates.
