Aluminium Pipe Bends and End Caps in Shipbuilding
In shipbuilding, aluminum alloys are crucial structural and piping materials due to their lightweight and seawater corrosion resistance. Marine aluminum pipe bends and end caps , as key aluminum alloy components, play a core role in piping systems and vessel structures, respectively, directly impacting ship operational efficiency and safety.

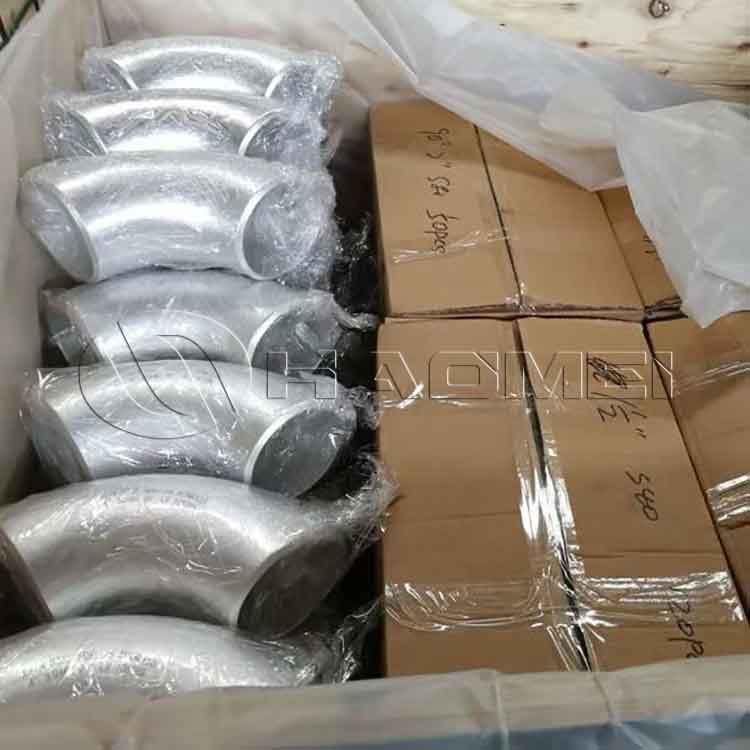

Aluminum elbows
Function
Change Pipeline Routing: Internal ship piping (such as cooling water, fuel, and compressed air pipes) has a complex layout and must adapt to the limited space of the cabin. Aluminum elbows can achieve pipe redirection at various angles, such as 90° and 45°, ensuring that the pipes are laid according to the designed route.
Ensure Stable Fluid Delivery: Made of high-strength aluminum alloy with an anti-corrosion surface treatment, it can withstand the vibration and seawater erosion of the ship during navigation, preventing leakage caused by stress concentration and corrosion at the turning points, thereby maintaining the stable flow of fluids such as fuel and cooling water.
Their Role in Shipbuilding
Marine aluminum elbows are the connecting hubs of a ship's piping system. Pipes for critical systems like the ship's powertrain, cooling system, and hydraulic system require multiple elbows to achieve a complex layout within a complex space. Without suitable aluminum elbows, piping cannot be properly planned, resulting in increased system volume, increased energy consumption, and even impacting the installation of other equipment. Their performance is directly related to the reliability of the piping system, and thus the overall operational safety of the ship.
Aluminum pipe end cap
Function
Container End Sealing: Aluminium pipe end caps are used to seal the ends of cylindrical containers such as fuel tanks, fresh water tanks, and ballast water tanks. Connected to the container cylinder through welding, they form a sealed space, preventing leakage of media such as fuel, fresh water, and seawater, while also withstanding the pressure of the media inside the container and the external seawater.
Pipeline End Sealing: Aluminum end caps are used to seal the ends of pipelines that do not require extension, preventing impurities from entering the pipeline, ensuring internal cleanliness, and preventing corrosion or damage caused by the open ends.
Significance in Shipbuilding
Marine aluminum end caps serve as a "safety barrier" for closed containers and piping systems. Fuel tanks and fresh water tanks are core storage facilities that maintain a ship's navigation. Their sealing performance directly determines the storage capacity and safety of fuel and fresh water. Failure of the aluminum end caps can lead to leakage, resulting in risks such as fire and equipment damage.
In piping systems, the sealing effect of aluminum end caps ensures stable piping functionality and prevents impurities from entering and affecting system operation. In addition, the lightweight characteristics of the aluminum caps can reduce the overall weight of the ship and reduce navigation energy consumption, which is in line with the trend of lightweight ship design.
