5083 Marine Aluminum Tempers and Machinability

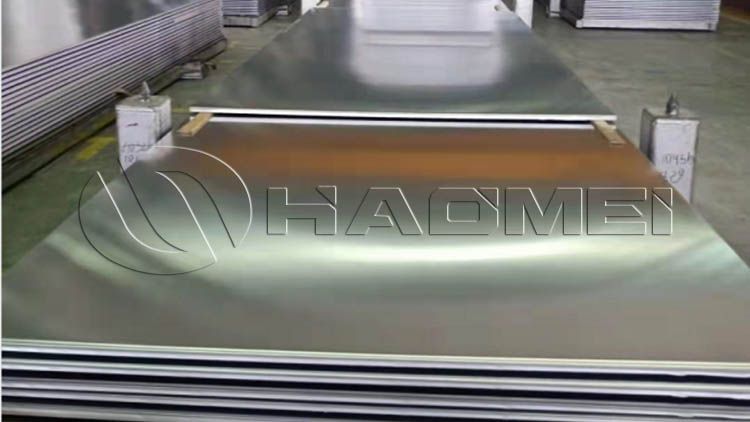

5083 aluminum plate plays a vital role in shipbuilding due to its excellent corrosion resistance and strength. 5083 aluminum machinability is a key factor influencing its full potential in marine applications.
5083 aluminum machinability
Machinability refers to the ability of a material to be successfully processed into parts that meet design requirements using various machining methods (such as cutting, drilling, bending, and welding), while ensuring machining efficiency, quality, and tool life. For 5083 marine aluminum plate, its machinability primarily impacts its use in ships in the following ways:
Ensuring the machining accuracy of ship components and improving overall ship performance
Many ship components, such as hull structures, pipe supports, and equipment bases, require extremely high dimensional and shape accuracy. The excellent machinability of 5083 marine aluminum sheet enables processing equipment to precisely perform cutting, milling, and other machining operations according to design drawings, ensuring that component dimensional errors remain within acceptable limits.
Improving Shipbuilding Efficiency and Reducing Production Costs
In the shipbuilding process, processing efficiency directly impacts the shipbuilding cycle. The excellent machinability of 5083 marine aluminum sheet effectively shortens processing time and improves production efficiency. It also reduces component scrapping during processing, reducing material waste.
Adapting to the Complex Machining Needs of Shipbuilding
Modern ship structures are becoming increasingly complex, placing increasing demands on material processing adaptability. 5083 marine aluminum sheet's excellent machinability enables it to adapt to a variety of complex machining processes, meeting the structural requirements of various ship components.
Common tempers of 5083 aluminum sheet include O (annealed), H112 (hot-rolled), and H32 (work-hardened and stabilized). Due to differences in internal structure and mechanical properties, the machinability of these various tempers varies significantly.
O temper
The O temper represents the state of 5083 aluminum sheet after a complete annealing process. At this stage, the grain structure within the sheet is relatively fine and uniform, stress is fully released, the hardness is low, and the plasticity is excellent.
Machinability: Due to its low hardness, cutting forces are low, tool wear is slow, and the cutting process is relatively smooth. However, its excellent plasticity also makes it prone to producing large chips during cutting, which can easily stick to the tool, affecting cutting accuracy and surface quality. It is important to use appropriate cutting fluids and tools, and to control the cutting speed to minimize chip sticking.
Bending and Stamping Processability: O-temper aluminum sheet has excellent plasticity and can withstand large bending and stamping deformations without cracking, making it ideal for forming processes such as bending and stamping. In shipbuilding, it is often used to form parts requiring complex bending shapes, such as decorative panels and small pipe elbows in ship interiors.
Weldability: Annealing uniformizes the chemical composition of O-grade aluminum sheet, resulting in high-quality welds, excellent joint strength and corrosion resistance, and relatively minimal weld distortion. This is a commonly used aluminum sheet condition in shipbuilding structures.
H112 aluminum sheet
H112 is the state of 5083 aluminum sheet after hot rolling without further cold rolling or heat treatment. Its mechanical properties are similar to those of the annealed state, but its internal grain size is relatively coarse, its hardness is slightly higher than that of the O state, and its plasticity is slightly lower than that of the O state.
H32 aluminum
5083 h32 aluminum is the state achieved by stabilizing 5083 aluminum sheet after work hardening (such as cold rolling). This grade has high hardness and strength, but relatively low plasticity. Its machinability differs significantly from that of grades O and H112:
Machinability: Due to its high hardness and strength, high cutting forces are required during cutting, resulting in rapid tool wear and a high risk of chipping. Furthermore, cutting generates significant heat, which, if not dissipated promptly, can affect tool life and surface quality. Therefore, when machining 5083-h32marine aluminum plate, it is important to select high-strength, wear-resistant tools, employ low cutting speeds and high feed rates, and implement effective cooling measures to ensure smooth machining.
Formability: H32 aluminum sheet has poor plasticity and is difficult to form. It can only be bent and stamped with small deformations, and is prone to cracking during processing. Therefore, this state of aluminum sheet is primarily used in ship components that require higher strength but are less difficult to form, such as load-bearing brackets and equipment bases. These components generally do not require complex forming processes and rely primarily on their high strength to withstand loads.
Welding processability: Welding is relatively difficult. Due to its high hardness and strength, it is easy to generate large welding stress during welding, which can cause cracks near the weld. To improve welding quality, it is necessary to preheat before welding, strictly control welding parameters during welding, and perform appropriate heat treatment after welding to eliminate welding stress and ensure the performance of the welded joint.
