Al 5052 H32 Material Properties
Al 5052 H32 Material Properties for Marine and Fabrication Orders
Al 5052 H32 material properties are most relevant when a project needs corrosion-resistant sheet with moderate strength, good bendability, and predictable formed-part performance. The primary purchasing risk is specifying H32 base-metal strength for a welded assembly without accounting for heat-affected-zone softening.

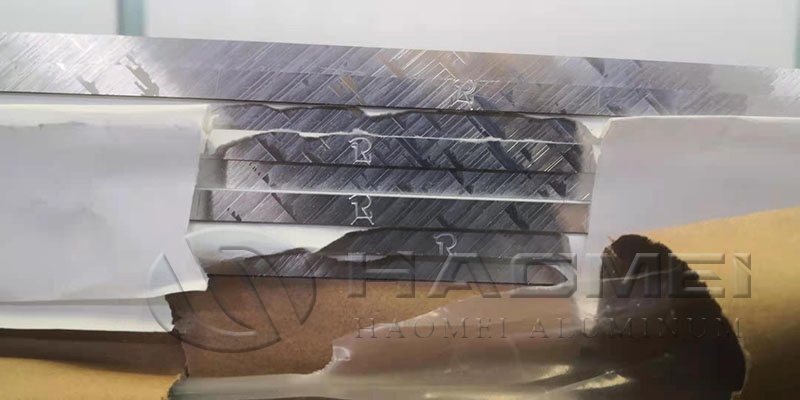

5052 is an aluminum-magnesium alloy in the 5xxx series. It is commonly supplied as sheet, coil, and plate for marine interiors, tanks, walkways, equipment covers, truck bodies, and formed enclosures. For seawater-facing structures, alloy selection must consider joint design, crevices, galvanic isolation, coating systems, and classification-society requirements where applicable.
What H32 Means
The temper designation is defined in ANSI H35.1/H35.1M.
- H means strain-hardened, non-heat-treatable material.
- H3 means strain-hardened and stabilized.
- H32 identifies a quarter-hard strength level after stabilization.
Stabilization is used on 5xxx-series aluminum to improve property stability. It does not mean that the material has been precipitation heat treated like 6xxx or 7xxx alloys.
For purchase documents, state alloy, temper, product form, dimensions, applicable standard, surface condition, and inspection documents. A designation such as "5052 H32" alone does not define thickness tolerance, flatness, chemical analysis method, or required test certificate.
Composition and Typical Physical Characteristics
ASTM B209/B209M covers aluminum and aluminum-alloy sheet and plate. Its composition limits for 5052 include 2.2% to 2.8% magnesium and 0.15% to 0.35% chromium. Maximum limits include 0.40% iron, 0.25% silicon, 0.10% copper, 0.10% manganese, and 0.10% zinc.
Magnesium provides solid-solution strengthening and contributes to corrosion resistance. Chromium helps control grain structure. The low copper limit is important because higher copper contents can reduce corrosion resistance in chloride environments.
| Property | Common reference value or requirement | Procurement relevance |
|---|---|---|
| Density | Approximately 2.68 g/cm³ | Use for weight estimates; confirm actual dimensions for shipment weight. |
| Elastic modulus | Approximately 70 GPa | Relevant to deflection calculations, not a strength substitute. |
| Alloy family | Aluminum-magnesium, non-heat-treatable | Strength comes mainly from cold work rather than solution heat treatment. |
| Corrosion behavior | Good atmospheric and marine-environment resistance | Avoid stagnant crevices and galvanic contact with dissimilar metals. |
| Weld response | HAZ loses some strain-hardened strength | Design welded parts using qualified joint and HAZ properties. |
Physical-property values above are commonly used for preliminary engineering calculations. Final structural calculations should use project-approved design data and the governing code rather than catalogue values.
Mechanical Requirements: Check Thickness Before Comparing Quotes
ASTM B209/B209M mechanical-property requirements vary by product thickness and temper. For 5052-H32 sheet, commonly specified minimum values are approximately 215 MPa tensile strength and 160 MPa yield strength. Elongation requirements vary with thickness, so a quotation should never compare elongation values without the exact gauge range.
| Item to compare | Why it changes the result |
|---|---|
| Thickness range | ASTM minimum elongation and some mechanical requirements depend on thickness. |
| Sheet versus plate designation | Product form and tolerances may differ even when alloy and temper match. |
| ASTM B209/B209M versus EN 485-2 | Mechanical-property tables, tolerances, and test conventions are not automatically interchangeable. |
| Mill test report heat number | Allows chemical and mechanical results to be traced to supplied material. |
| Direction of testing | Rolling direction can affect bend behavior and elongation. |
Specify the standard edition in the purchase order. ASTM B209/B209M is widely used in North America. EN 485-2 is frequently used for European-specified sheet and plate. If a drawing lists one standard and a certificate lists another, require a documented equivalency review rather than assuming compliance.
Corrosion Performance in Marine Service
5052-H32 performs well in marine atmospheres and intermittent seawater exposure because it is a low-copper 5xxx alloy. It is often suitable for non-primary marine fabrications such as lockers, console panels, gangway components, tank covers, accommodation equipment, and formed sheet parts.
However, corrosion resistance does not remove design controls. Use the following checklist:
- Separate aluminum from carbon steel, copper alloys, and stainless steel where trapped electrolyte can create galvanic corrosion.
- Avoid unsealed lap joints and wet debris traps.
- Use compatible fasteners, insulating washers, or approved isolation systems.
- Remove chloride deposits from enclosed or low-drainage areas.
- Define coating preparation and touch-up requirements where paint is specified.
- Confirm whether the project requires classification approval for hull, superstructure, pressure vessel, or offshore use.

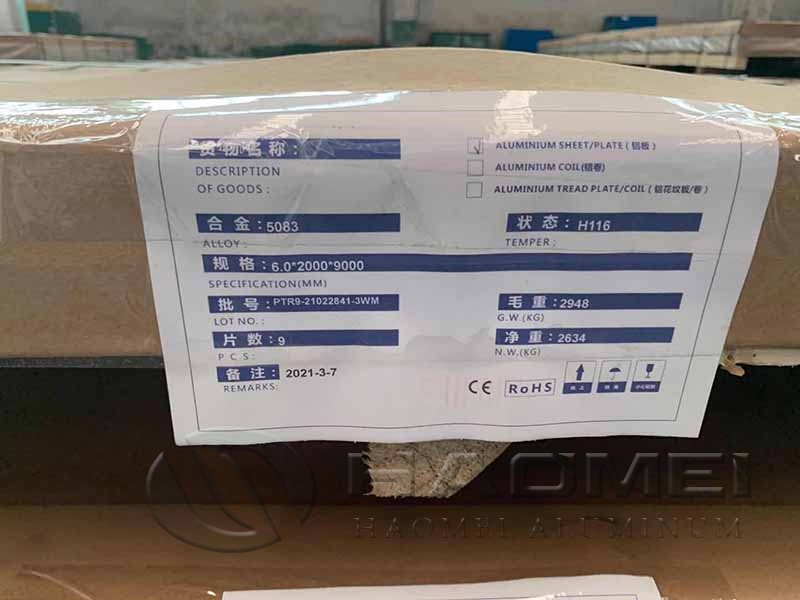

For higher-strength welded marine structures, Alu 5083 is often evaluated instead because it is commonly selected for marine hull and structural plate applications. The required comparison must include thickness, welding procedure, design stress, corrosion exposure, and class rules, not just a tensile-strength figure.
Welding and Forming: The Main Control Point
5052-H32 has good forming performance, but bend radius should be confirmed against thickness, bend direction, finish, and part geometry. Tight bends transverse to the rolling direction generally need greater care than bends parallel to the rolling direction.
For welded fabrications, the H32 temper is not retained throughout the heat-affected zone. Welding heat locally anneals strain-hardened material, reducing the strength near the weld. A base-material certificate showing H32 values does not demonstrate welded-joint performance.
Use a qualified welding procedure specification where required. Filler selection is application-specific; 5356-series fillers are commonly used for 5xxx alloys, but filler choice must also consider service temperature, anodizing requirements, joint configuration, and applicable welding code. Require visual inspection and, where specified, liquid penetrant testing, radiography, bend testing, or macroetch examination under the project inspection plan.
Order Specification and Incoming Inspection Checklist
For repeated sheet orders, include the following requirements in the technical specification:
- Alloy and temper: AA 5052-H32.
- Product standard: ASTM B209/B209M or EN 485, with edition identified.
- Dimensions: thickness, width, length, permitted thickness tolerance, flatness, and squareness.
- Surface: mill finish or protective film, with acceptance criteria for scratches, dents, roll marks, and staining.
- Documentation: mill test report showing heat or lot traceability, chemical analysis, tensile results, and temper.
- Packaging: interleaving, moisture barrier where needed, edge protection, and pallet loading limits.
- Inspection: agreed sampling plan, dimensional measurement method, and disposition process for nonconforming material.
When corrosion resistance and formability are the priority, Alu 5052 in H32 temper is a practical material for controlled sheet-metal fabrication. When the part is heavily welded or carries primary structural load, require an engineering review of the post-weld design properties before releasing material.
