Aluminum Tube Fittings for Boat
In the field of shipbuilding and maintenance, aluminum tube fittings play a vital role. From connecting pipelines to ensuring system operation, these fittings, with their unique alloy materials, diverse shape designs and powerful functional characteristics, lay a solid foundation for the safety and efficient navigation of ships.
Alloys
Marine aluminum pipe fittings are mostly made of special aluminum alloys, among which 6xxx series and 5xxx series aluminum alloys are the most common. 6061 aluminum alloy, because it contains magnesium and silicon elements, has excellent weldability and mechanical properties. This feature makes it popular in the manufacture of various marine accessories, such as marine handrails, railings and some structural parts, and can withstand a certain degree of external force impact while ensuring the firmness of the connection parts.
5083 aluminum alloy, with its 4.0% - 4.9% magnesium content and strict control of impurities, shines in shipbuilding. Its tensile strength is between 275 - 350MPa, and its yield strength is ≥110MPa. It shows extremely excellent corrosion resistance in the marine environment. It is often used to manufacture key accessories such as masts, rudders, deck brackets, etc. of ships. Even if it is subjected to long-term seawater erosion, it can still maintain good performance, effectively extending the service life of the ship.
Various shapes

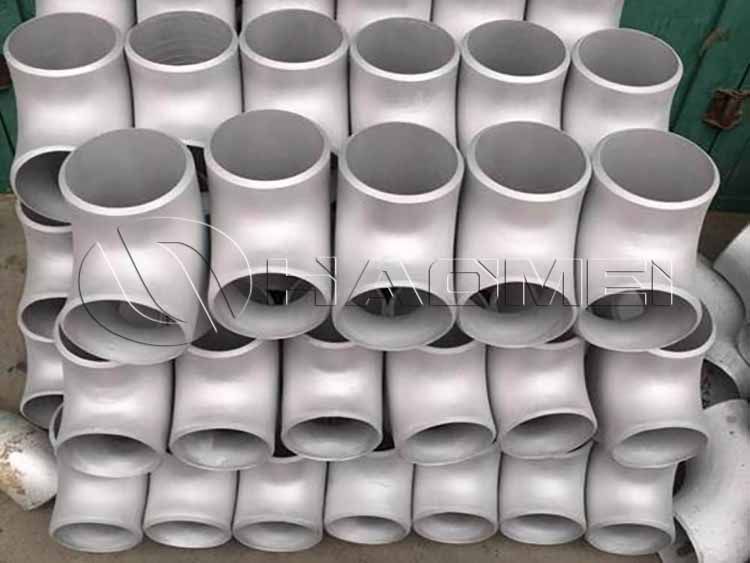

The shapes of marine aluminum tube accessories are rich and varied to meet the installation and use requirements of different systems and parts of ships. Common ones include elbows, tees, straight joints, pipe clamps, etc.
Aluminum square tube fittings are also diverse and suitable for the use of square aluminum tubes. Square elbows can realize the steering connection of square aluminum tubes. In the construction of the ship's structural frame, the square aluminum tube can flexibly change direction according to the hull structure. For example, in the frame connection at the corner of the cabin, the 90-degree square elbow can make two vertical square aluminum tubes precisely docked to form a stable corner structure.
Square tees are used for branch connection of square aluminum tubes. In some parts where branch frames need to be extended from the main frame, square tees can effectively connect a main square aluminum tube with two branch square aluminum tubes to expand the support range of the structure. For example, the equipment support frame on the ship deck can extend multiple branches from the main frame through square tees to provide support points for different equipment.
The square straight joint is used for the straight connection of two square aluminum tubes to ensure that the square aluminum tubes after connection are in the same straight line, maintain the integrity and stability of the structure, and are indispensable in the construction of longer square aluminum tube frames.
Powerful functions
Marine aluminum pipe fittings play an indispensable role in the operation of ships. In the ship's cooling system, aluminum pipe fittings are connected to the cooling water pipeline, introducing seawater into the engine and other equipment, taking away the heat generated by the operation, and ensuring that the equipment works stably at an appropriate temperature. Among them, high-quality sealed aluminum pipe joints can effectively prevent seawater leakage and avoid equipment damage or corrosion due to leakage.
In the fuel system, aluminum fuel pipe fittings must not only have good oil resistance, but also ensure the safety and stability of fuel transportation. Its tight connection can prevent fuel leakage from causing safety hazards and ensure the continuous and reliable operation of the ship's power system.
In addition, in the ship's ventilation system, the ventilation ducts connected by aluminum pipe fittings can achieve effective air circulation in the cabin and maintain a comfortable working and living environment. Some specially designed ventilation pipe fittings also have the functions of adjusting the air volume and preventing foreign matter from entering, providing guarantees for the optimization of the ship's internal environment.
