How to Design An Aluminum Boat
In the shipbuilding industry, aluminum alloy, thanks to its advantages of lightweight, corrosion resistance, and high strength, has become the preferred material for high-speed passenger ships, workboats, yachts, and other types of vessels. However, the design and manufacture of aluminum alloy ships is not a simple "material replacement." The entire process must be planned in accordance with the material's characteristics. In particular, the selection of marine aluminum sheet and marine profiles directly determines the performance and safety of the vessel.
Design phase
Aluminum alloy ship design must prioritize the vessel's intended use (e.g., passenger transport, fishing, or operational), navigation area (inland, coastal, or ocean), and performance indicators (speed, load capacity, and wind and wave resistance). Based on this, the hull structure and material specifications are determined, adhering to three key principles:
Balancing Lightweight and Strength: Aluminum alloy has a density only one-third that of steel, which can reduce hull weight and increase speed. However, this difference in stiffness requires structural optimization, such as using a combination of thin hull plating and reinforced profiles.
Corrosion Resistance: Chloride ions in the marine environment can easily corrode aluminum alloys. Therefore, corrosion-resistant alloys should be selected during design, and a corrosion margin (typically 1-2mm) should be allowed.
Welding Process Compatibility: The welding properties of different aluminum alloys vary significantly, so welding methods (such as MIG welding and TIG welding) must be matched in advance to avoid welding defects caused by improper material selection.
During this stage, the material type must be initially determined. The main hull is often constructed from 5-series aluminum alloys (such as 5083 aluminum sheet and 5086) for their corrosion resistance and weldability. Load-bearing structures (such as keels and ribs) are preferably constructed from 6-series aluminum alloys (such as 6061 and 6082), which offer higher strength and can be heat-treated for strengthening.
Core materials

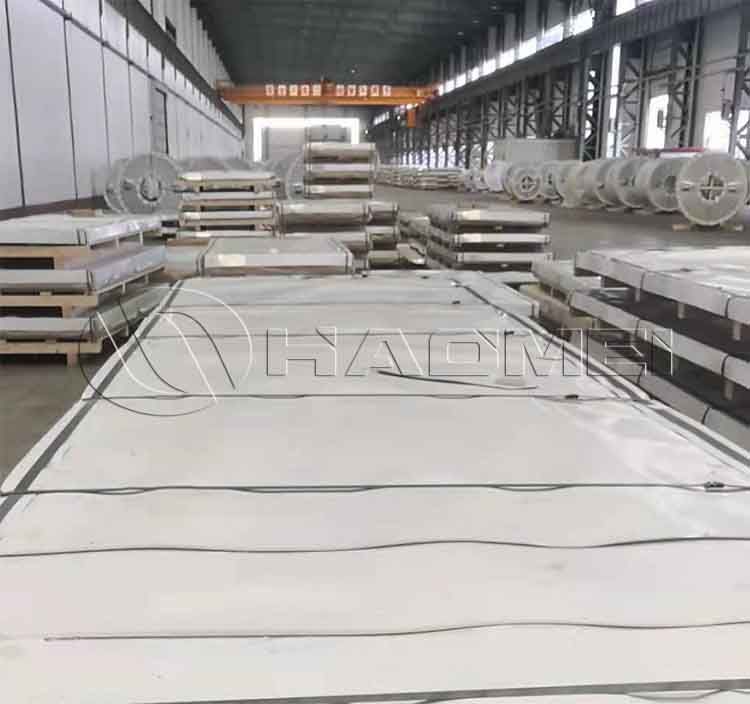

Marine aluminum sheet
Marine aluminum plate is the outer structure of a ship's hull and must meet requirements for watertightness, impact resistance, and corrosion resistance. Common specifications and applications are as follows:
5083-H116 aluminum sheet
Thickness range: 4-20mm. It is a core material for hulls, particularly suitable for areas directly exposed to seawater, such as the bottom and sides.
Advantages: It contains approximately 4.5% magnesium, offering excellent marine corrosion resistance, minimal strength loss after welding, and can withstand wave impacts and localized pressure during ship groundings. We provide aluminium 5083 stockist for the shipbuilders.
5086-H321 aluminum plate
Thickness range: 3-15mm, primarily used for superstructures (such as wheelhouses and deckhouses).
Advantages: It has lower magnesium content than 5083 (approximately 4%), allowing for better shaping and suitable for complex curved surfaces. It also offers excellent weather resistance, resisting rain and salt spray corrosion on superstructures.
6061 t6 aluminum sheet
Thickness range: 6-30mm. It is used only in locally stressed areas, such as equipment bases on deck and side fenders.
Advantages: Being heat-treated, it achieves a tensile strength of up to 310 MPa, capable of bearing the weight of equipment and external impacts. However, its corrosion resistance is weaker than that of the 5 series and requires additional anti-corrosion treatment (such as spraying with fluorocarbon paint).
Marine aluminum profile
Marine profiles are supporting members within the hull, connected to the ship hull through welding to form a rigid framework. Common types and functions are as follows:
Angle Aluminum Profile (5083-H112):
Specifications: It is of unequal sides (e.g., 30×20×3mm, 50×30×4mm). It is primarily used for shipboard joints (e.g., the angle between the side and deck), and for connecting bulkheads to the hull.
Purpose: It is used to enhance the sealing and strength of joints, preventing weld cracking caused by long-term stress.
T profile(aluminium alloy 6082 t6):
Specifications: Web height is 30-100mm, flange width is 20-50mm. It is commonly used for longitudinal hull frames (such as keels and stringers).
Purpose: It serves as the hull's "main beam," bearing the ship's longitudinal bending stresses, especially during navigation, to reduce mid-hull sagging.
Grooved Aluminum Profiles (5083 and 6082):
Specifications: Grooved width is 20-50mm, thickness is 3-6mm. It is mainly used for compartment dividers (such as bulkhead frames in cargo holds and ballast tanks).
Advantages: The grooved structure facilitates flush installation of bulkhead panels while also enhancing the bulkhead's buckling resistance, preventing deformation due to internal and external pressure differentials.
Hollow Profiles (6063-T5):
Specifications: Round (diameter 20-50mm) or square (side length 20-40mm). It is mainly used for superstructure railings and handrails.
Advantages: Lightweight, sufficient strength, and the hollow structure facilitates wiring (e.g., cables can be routed through railings), achieving a balance of functionality and aesthetics.
Manufacturing Process
Aluminum alloy shipbuilding requires a strict "precision machining - reliable welding - rigorous inspection" process, with each step tailored to the material's characteristics:
Material pre-treatment:
Upon arrival, the marine grade aluminum plates and profiles undergo surface treatment—alkaline cleaning to remove the oxide film, followed by chromate passivation to enhance corrosion resistance. Cutting is also performed according to the design drawings, with aluminum plates using plasma cutting to prevent high-temperature deformation and profiles using CNC sawing to ensure dimensional accuracy.
Hull Forming and Welding:
The aluminum plates are first machined into curved surfaces (such as the arc shape of the ship's bottom) through cold or hot bending. For 5-series aluminum alloys, the hot bending temperature must be controlled (no more than 200°C).
MIG welding (metal inert gas welding) is preferred. The welding materials must be compatible with the base material (e.g., ER5087 welding wire for 5083 aluminum plates). After welding, the welds are pickled and passivated to eliminate residual scale and stress.
Assembly and Inspection:
After welding is complete, the cabin equipment, pipelines, and superstructure are installed. Watertightness testing (filling the cabin with water to detect leaks) and structural strength testing (using water or oil pressure to simulate the forces of navigation) are then conducted to ensure that all material properties and structural stability meet standards.
