Aluminium Threaded Pipe Fittings For Shipbuilding
In shipbuilding and maintenance, marine pipe fittings are an indispensable and important part, which is responsible for connecting pipes into a complete pipeline system. Among them, aluminium threaded pipe fittings are widely used in ship pipelines due to their unique advantages, such as good corrosion resistance and light weight.
Common types of marine aluminum threaded pipe fittings
Aluminum threaded elbow: elbows are used to change the direction of pipes in the piping system, so that the pipes can flexibly adapt to the complex spatial layout inside the ship. Aluminum threaded elbows are connected to pipes by threaded connection, and installation and removal are relatively convenient. Common bending angles include 90 degrees and 45 degrees, etc., which can be selected according to the actual pipeline direction requirements.
Aluminum threaded tee: Tee fittings are used where three pipes converge to realize the branching function of the pipeline. Aluminum threaded tees also use threaded connections, and they are divided into equal-diameter tees and reducing-diameter tees. The three interface pipe diameters of equal-diameter tees are the same, which is suitable for pipeline scenarios that require uniform diversion or confluence; while reducing tees allow pipes of different diameters to be connected to meet the needs of variable-diameter pipeline branches. In the cooling water pipelines of ships, aluminum threaded tees are often used to distribute the cooling water of the main pipeline to various equipment that needs to be cooled.
Aluminum threaded cross: The cross fittings are used where four pipes converge, which can further increase the complexity and diversity of pipeline branches. Aluminum threaded crosses are also divided into equal diameter and different diameter types. In some complex piping systems of ships, such as ventilation pipes, they can achieve airflow distribution or convergence in multiple directions.
Aluminum threaded reducer: Reducers are used to connect two pipes of different diameters. Aluminum threaded reducers can achieve a smooth transition of pipe diameters and reduce the resistance of fluids flowing in the pipeline. In the ballast water pipeline of a ship, since different parts have different requirements for pipe diameters, aluminum threaded reducers can be used to connect ballast water pipes of different diameters to ensure the smooth delivery of ballast water.

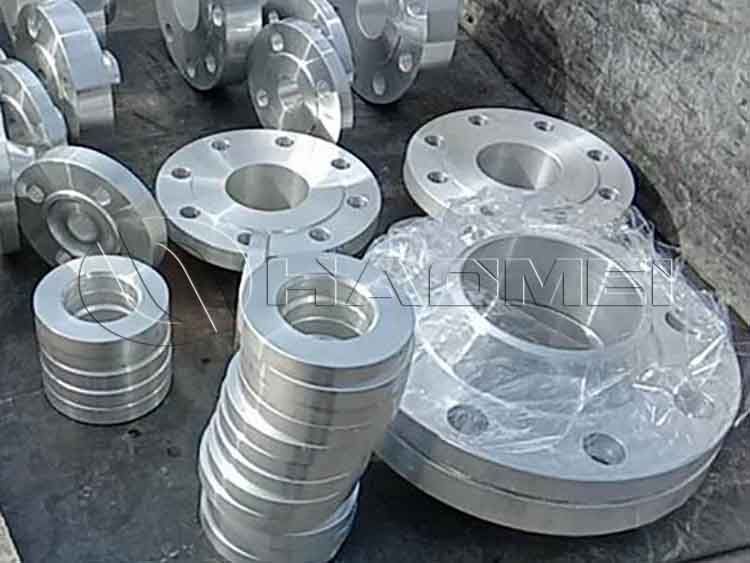

In the complex piping system of ships, different types of aluminum threaded pipe fittings have their own functions, but the efficient connection and collaborative work between them cannot be separated from the help of aluminum pipe flanges. As a key component in pipeline connection, aluminum flanges have unique advantages and important roles.
For example, in the fuel pipeline of a ship, aluminum threaded elbows are matched with integral aluminum flanges. The excellent pressure-bearing capacity of the integral aluminum flanges can ensure that there will be no leakage in the connection parts even in the face of pressure fluctuations during the fuel transportation process.
In the cooling water pipeline, the aluminum threaded tee is combined with the necked aluminum flange. The enhanced rigidity and strength of the necked aluminum flange can effectively resist the vibration during the operation of the ship and prevent the cooling water pipeline connections from loosening.
